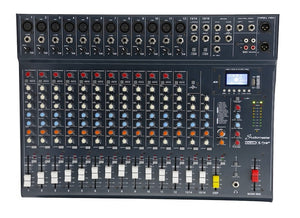

Mesa de Mistura Analógica STUDIOMASTER CLUB XS 16+
Mesa de Mistura Analógica STUDIOMASTER CLUB XS 16+
Regular price
€350,00 EUR
Regular price
Sale price
€350,00 EUR
Unit price
/
per
Tax included.
Couldn't load pickup availability
Club XS
Compact, portable mixing consoles featuring 5 to 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions.
3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.
Ultra compact, light weight, high quality and extremely versatile, the Club XS is the perfect mixer for any live performance and home recording situation .
Features
16 inputs
12 mic channels
2 stereo channels
2 AUX sends
16 DSP effects
Foot switch socket for DSP
PFL’s on all channels
Bluetooth
USB/SD media player
Specification
Inputs: 16
Mic Inputs: 12
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN: -100dB
Frequency Responce: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V ~
Dimension W*D*H: 385 x 527 x 85 (mm)
Compact, portable mixing consoles featuring 5 to 16 inputs, Bluetooth connectivity, on-board DSP effects and USB/SD card playback and recording functions.
3 band EQ, 2 auxiliaries, balanced mic/line connectors, compressor control, and a useful mute switch on all Mic and line input channels, and 2 band EQ with 2 auxiliaries for both stereo channels. There are also balanced XLR connectors for the main outputs, jack outputs for auxiliaries and control room, and phono connectors for record and playback.
Ultra compact, light weight, high quality and extremely versatile, the Club XS is the perfect mixer for any live performance and home recording situation .
Features
Specification
Inputs: 16
Mic Inputs: 12
Stereo Inputs: 2
Mic Gain Range: 6dB to 50dB
Line Gain Range: 10dB to 34dB
EIN: -100dB
Frequency Responce: 10Hz – 20kHz (+1/-3dB)
THD Mic Channel: <0.1%
Signal to Noise Ratio: 80dB
Output Levels: Max +26dB (Bal), +20dB (unBal)
EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
USB/SD: MP3 Audio playback
Record: To USB drive or SD card (128kbps mono)
DSP Effects: 16 DSP effects
Power Requirements: 100V – 240V ~
Dimension W*D*H: 385 x 527 x 85 (mm)
