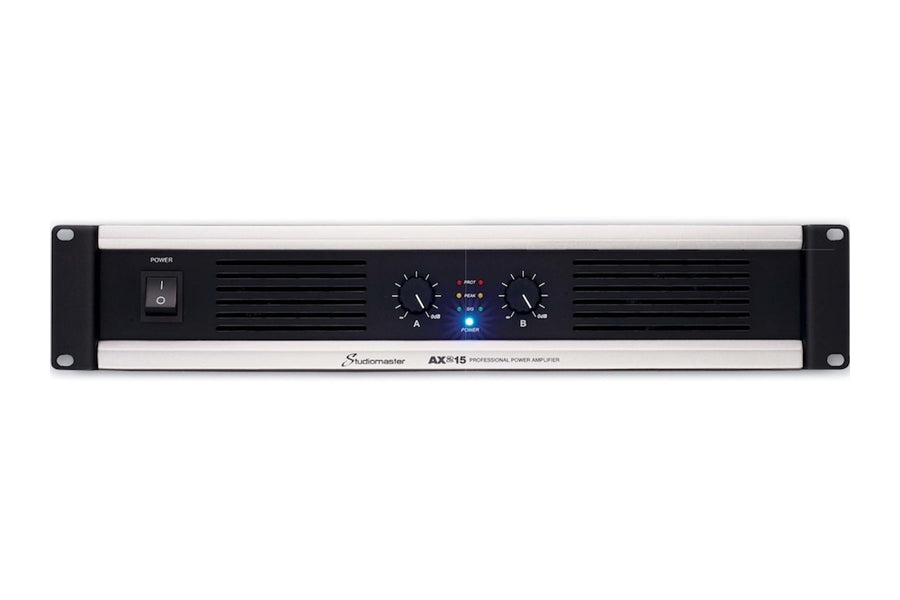

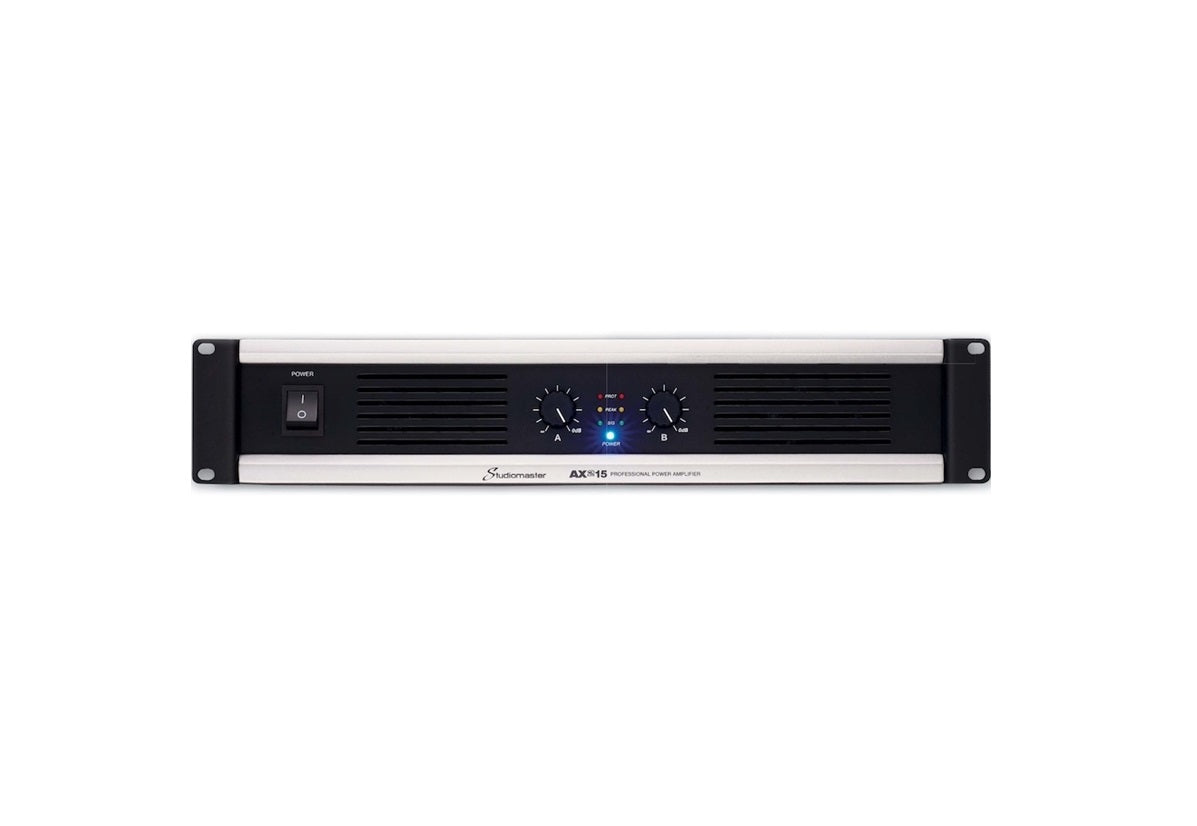

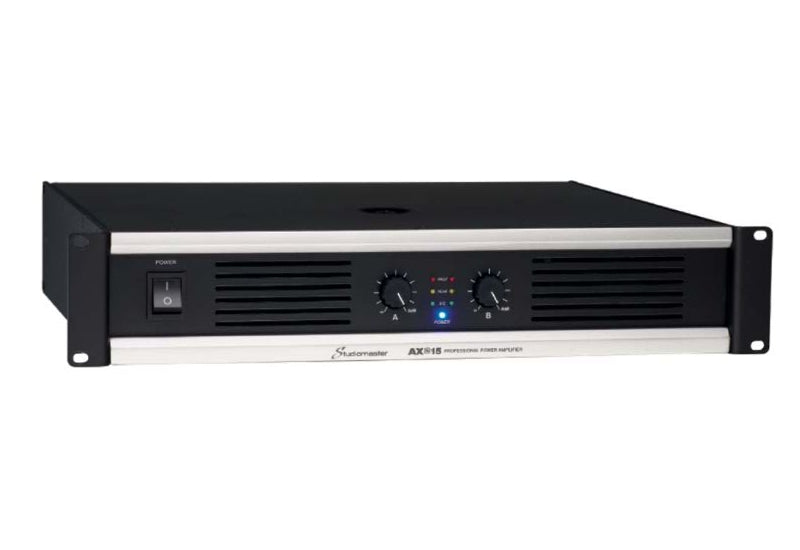

Amplificador STUDIOMASTER AX2
Amplificador STUDIOMASTER AX2
Couldn't load pickup availability
Input Sensitivity: rated power 4ohm0dBu 0.775V
Distortion THD: 1kHz @ rated power 0.01-0.02%
Frequency Response: 20Hz – 20kHz (+0/-0.5dB)
Signal to Noise Ratio: rated power 4ohm 100dB unweighted
Input Filter: 3rd order 18dB/oct 35Hz
Crossover: selectable 100/150Hz 3rd order filter
Cooling: Twin variable speed fans, back to front airflow
Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection
Power Requirements: 230V +/-10% 50/60Hz

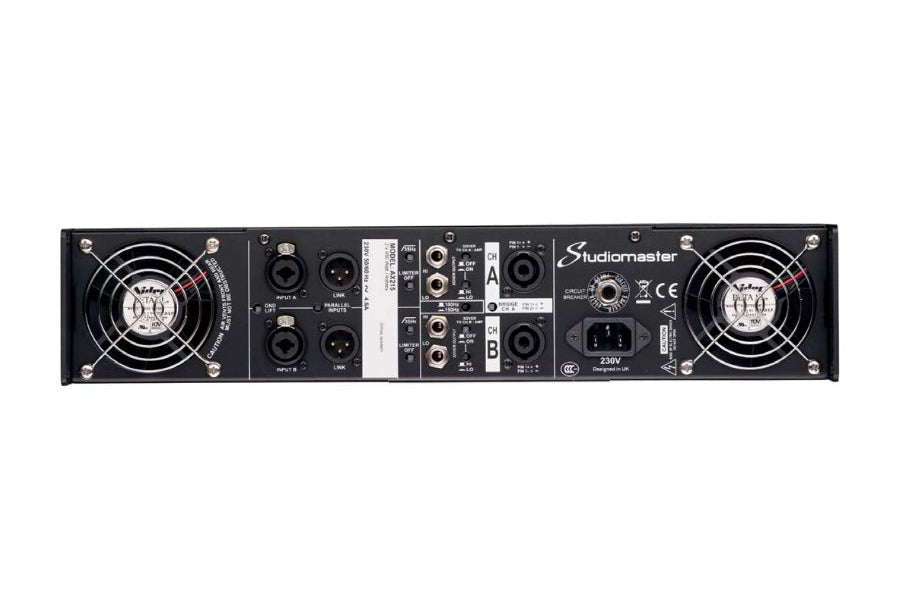

Input Connections: Combination XLR and Jack, Male XLR link socket
output Connections: 4 pole industry standard sockets
|
AX2 15 |
Both Channel @ 8ohms RMS: 270watts Both Channel @ 4ohms RMS: 450watts Both Channel @ 2ohms RMS: 575watts Bridged @ 8ohms RMS: 900watts Bridged @ 4ohms RMS: 1150watts |
Output Circuit: AB Dimensions: 482mm x 89mm x 394mm |
|
AX2 25 |
Both Channel @ 8ohms RMS: 450watts Both Channel @ 4ohms RMS: 750watts Both Channel @ 2ohms RMS: 990watts Bridged @ 8ohms RMS: 1500watts Bridged @ 4ohms RMS: 1950watts |
Output Circuit: AB+H(2) Dimensions: 482mm x 89mm x 394mm |
|
AX2 35 |
Both Channel @ 8ohms RMS: 710watts Both Channel @ 4ohms RMS: 1100watts Both Channel @ 2ohms RMS: 1450watts Bridged @ 8ohms RMS: 2200watts Bridged @ 4ohms RMS: 2900watts |
Output Circuit: AB+H(3) Dimensions: 482mm x 89mm x 394mm |
