Mesa de Mistura Analógica STUDIOMASTER CLUB XS 10

Mesa de Mistura Analógica STUDIOMASTER CLUB XS 10

Preço normal €233,00 EUR
Preço normal Preço de saldo €233,00 EUR
Em promoção Esgotado
Imposto incluído.
Product Description

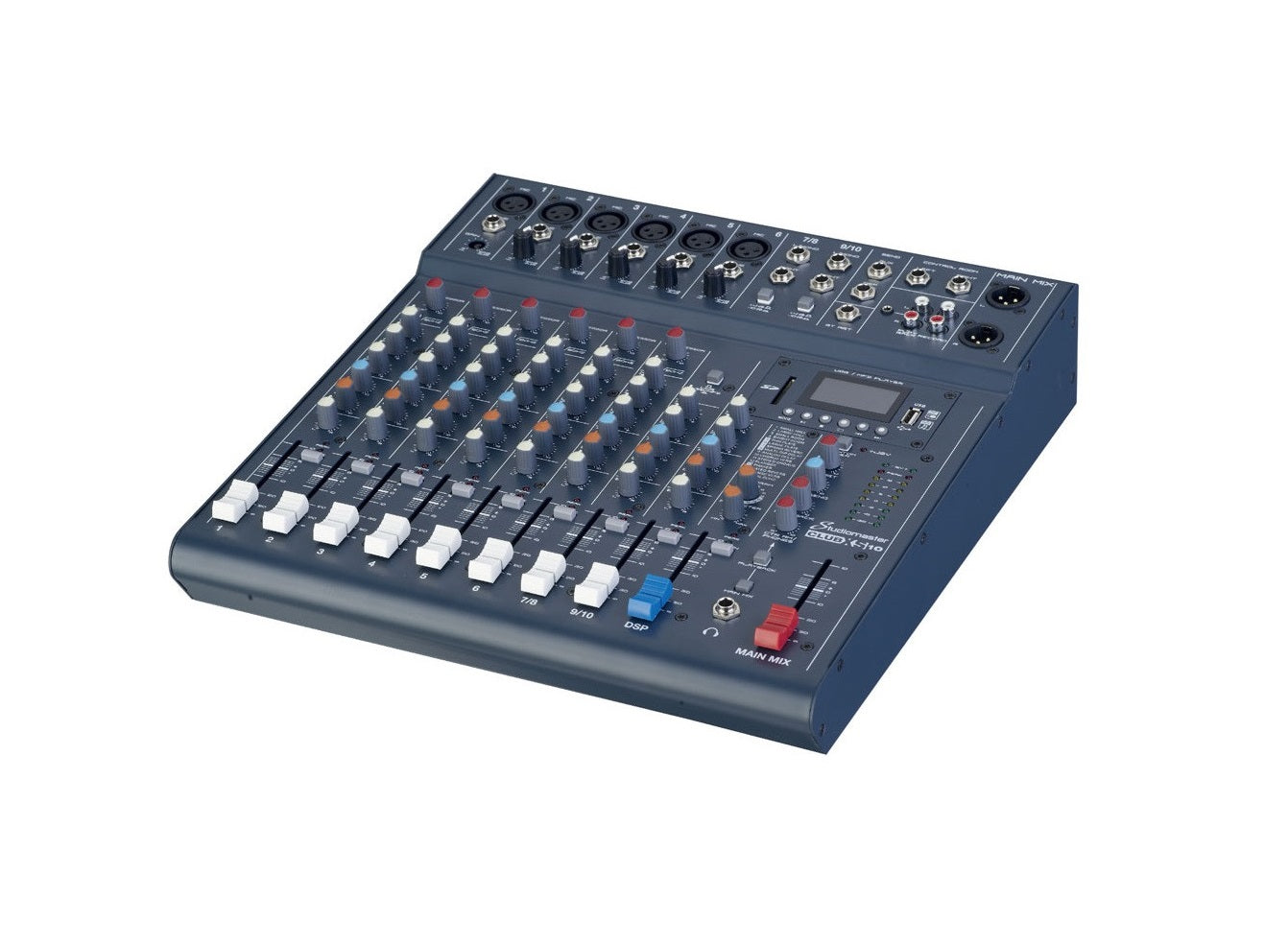

New to the range for 2015 are our CLUB XS range of compact, and portable mixing consoles. Offering all the features and specifications required from mixing consoles at this level, at a great price point. With features such as 3 band EQ, built-in channel compression, DSP effects and a hugely versatile MP3/USB/SD card playback and recording system.

Available in either 8 input or 10 input models. The 8 input with 4 mic channels, the 10 with 6 mic channels. Both feature 2 stereo input channels.
Input channels, are fully featured with 3 band EQ, 2 Auxiliaries, balanced mic/line connectors, compressor control and a useful channel MUTE switch. Stereo channels differ only with 2 band EQ and no compressor.
Main outputs are balanced XLR, with additional jack outputs available for auxiliaries and control room, and RCA phono record/playback facilities.

The USB/SD card facility for stereo recording / playback make the CLUB XS ideal for project home recording or giving the ability to supply interval / backing music to your live performance. To add further practicality to the unit, there is a built in MP3 player and Bluetooth playback facility to give you every opportunity to make your live performance as quick and easy to set-up as possible.

Also included on both CLUB XS models is a high quality 16 programme DSP effects unit.

In addition to this, the CLUB XS models feature +48V phantom power on all mic channels, high quality 60mm smooth faders, and a robust quiet internal switchmode power supply.


  • 8 and 10 input models
  • 3 Band EQ on all mic channels
  • High pass filters and adjustable compression on all mic channels
  • USB/SD card recording / playback
  • Bluetooth (tm) playback facility
  • High quality DSP effects
  • Mic channels feature adjustable compressor facility

  • Specification
    - Inputs: 10
    - Mic Input channels: 6
    - Stereo Input channels: 2
    - Gain: Min - Max
    - Mic: -16dB - -60dB
    - Line: +10dB - -34dB
    - EIN: -100dB
    - Mic Channel: 10Hz - 20kHz+1/-3dB
    - THD Mic Channel: <=0.1%
    - Signal to noise ratio: 80dB
    - Output Levels Balanced: +26dB Max
    - Output Levels Unbalanced: +20dB Max
    - Hi: 12kHz
    - Mid: 2.5kHz
    - Lo: 45Hz
    - Lo Cut: 80Hz
    - MP3/USB/SD Audio playback: 2 channel playback
    - USB/SD Audio recording: 2 channel recording from mix output
    - Bluetooth Playback : 2 channel playback
    - DSP Effects: 16 presets with adjustable parameter
    - Power requirements: 100-240V ~ 50/60Hz
    - Dimensions (wxhxd): 339x359x70mm
