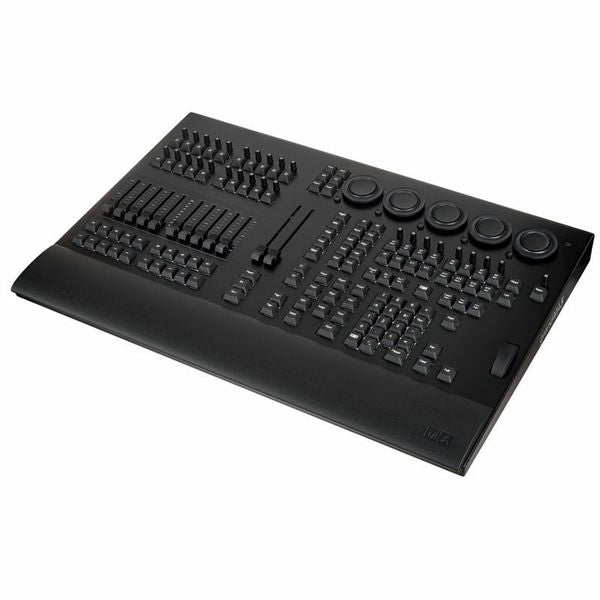

Mesa de Luz MA LIGHTING GRANDMA3 ONPC COMMAND WING XT

• Real-time control of up to 4,096 parameters
• MA motherboard with pre-installed grandMA3 onPC software
• Only a touchscreen has to be connected for operation (not included)
• Layout of the command section identical to the grandMA3 onPC
• Command Wing
• 29 Rotatable RGB backlit encoders
• 5 Dual encoders
• 10 Motorised 60 mm faders
• 40 Independent playbacks
• 16 Assignable x buttons
• 2 Motorised A / B 100 mm faders
• 1 Level wheel
• Individually backlit, dimmable and low-noise (clickless) buttons
• Power supply: 100 - 240 V ~ 50/60 Hz
• Performance: max. 100 VA
• Weight: 12 kg
• Dimensions: 620 x 427 x 112 mm

Note: A grandMA3 onPC system supports a maximum of 4096 parameters

Connections:

• 2 x RJ45
• 2 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode In (3pin XLR female)
• 1 x Audio in (mini jack 3.5mm)
• 1 x Audio out (mini jack 3.5mm)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 4 x DisplayPort 1.2 for external screens
• 2 x USB 2.0 (type A)
• 2 x USB 3.0 (type A)
• 1 x LED desk lamp (4pin XLR female)
• Current input: IEC
