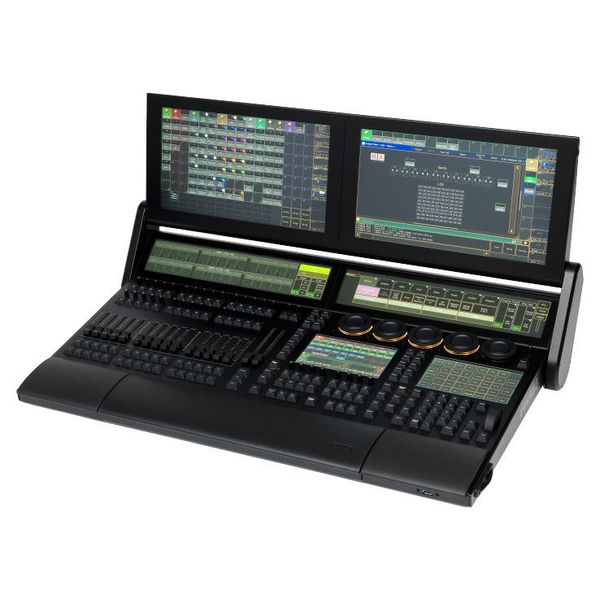

Mesa de Luz MA LIGHTING GRANDMA3 LIGHT

• Real-time control of up to 250,000 parameters per session in combination with grandMA3 processing unit
• 6 DMX outputs
• 1 DMX input
• 2 Internal multi-touch screens in foldable monitorwing
• 2 Internal letterbox multitouch screens
• 2 Internal multi-touch command screens
• 2 External multi-touch screens can be connected
• 41 Rotatable RGB backlit encoders
• 5 Backlit dual encoders
• 15 Motorised and backlit 60mm faders
• 60 Independent playbacks
• 16 Assignable x-keys
• Integrated keyboard drawer
• Built-in uninterruptible power supply (UPS)
• 2 Backlit and motorised A / B 100mm faders
• Individually backlit, dimmable and low-noise (clickless) buttons
• Includes dust cover, 2 MA LED desk lights and MA magnetic foil for labelling 15 faders

Technical specifications:

• Parameter: 8.192 (HTP / LTP)
• Parameter Mode2: 4.096 (HTP / LTP)
• Supply voltage: 100-240 V / 50/60 Hz
• Power: max. 300 VA
• Dimensions (W x D x H): collapsed and drawer closed 854 x 539 x 181 mm / monitorwing at operating height: 854 x 584 x 409 (max 450) mm
• Weight: 33 kg

Connections:

• 1x Power Twist TR1
• 3x etherCON / RJ45
• 6x DMX512-A Out (5pin XLR female)
• 1x DMX512-A In (5pin XLR male)
• 1x MIDI In (5pin DIN female)
• 1x MIDI Out (5pin DIN female)
• 1x Linear Timecode In (3pin XLR female)
• 1x Audio In (3pin XLR female)
• 1x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 2x DisplayPort 1.2 for external screens
• 2x S / PDIF in and out
• 3x USB 2.0 (Type A)
• 3x USB 3.0 (Type A)
• 2x LED desk light (4pin XLR female)
